Pneumatic lining butterfly valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
Pneumatic fluorine-lined butterfly valve (also known as corrosion-resistant pneumatic butterfly valve) is composed of pneumatic piston actuator and tetrafluoro-sealed butterfly valve. Fluorine-lined pneumatic butterfly valve is a kind of high molecular material with thick lining technology on the over-flow parts, valve body, butterfly plate and valve stem. It has excellent corrosion resistance and can be applied to any concentration of acid, alkali, salt and oxidant, reducing agent, organic solvent, etc. Medium, pneumatic fluorine-lined butterfly valve is an ideal product for intercepting and regulating equipment in gas, liquid and semi-fluid pipelines and containers of chemical, petroleum, pharmaceutical, food, steel smelting, paper making, hydropower and other systems. Fully lined polytetrafluoroethylene (F4) and polyperfluoroethylene propylene (F46) fluoroplastic lined valves have the advantages of corrosion resistance, leak-free, long service life and so on. Corrosion-resistant pneumatic butterfly valve is suitable for concentrated sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, Aqua regia, various organic acids, strong acids, oxidizing media or high-temperature olefinic acid, high-temperature concentrated acetic acid, acid-base alternation and a variety of organic solvents and other strong corrosive media.
Main features of pneumatic lining butterfly valve
1, small size, light weight, easy operation, easy installation and maintenance.
2, good sealing performance, reliable zero leakage and long service life.
3, the flow characteristics tend to be straight, and the regulation performance is the best.
4, simple structure, fast switching, 90 degree rotary opening and closing.
5, can replace gate valve, stop valve, plug valve, hose valve and diaphragm valve and other valves.
6. The pneumatic and electric devices can be configured to meet the needs of remote control and program control.
7, replacement of parts lining material can be applied to all kinds of media.
Main technical parameters of pneumatic lining butterfly valve
valve body
type of body | Straight through casting butterfly valve |
Nominal path | DN50～1000mm |
Nominal pressure | PN1.0、1.6 MPa |
Flanges standard | JIS B220、JB/T79、ANSI B16.5-1981、GB/T9113、HG20594-97、HG20618-97等 |
Connection form | Flanged、Pair clip |
Valve cover form | One in one |
Capping type | Gland pressing type |
Seal filler | V PTFE packing and flexible graphite filler |
Valve plate form | Vertical plate type (butterfly shaped) |
Flow characteristics | linear |
Actuator type | GT series, ST series, AT series and AW series single and double acting pneumatic actuators |
Gas supply pressure | 400～700KPa |
air connection | G1/4"、G1/8"、G3/8"、G1/2" |
ambient temperature | -30～+70℃ |
Form of action | Single acting actuator: B: when the gas is lost, the valve position is opened (FO); the gas opening type (K) is the valve position (FC) when the gas is lost.
Double-acting actuator: air-closed type (B) - valve position retention (FL) during degassing; air-open type (K) - valve position retention (FL) single-acting double-acting pneumatic actuator during degassing |
Appendable appendage | Locator, solenoid valve, air filter pressure reducer, retaining valve, stroke switch, valve position conveyor, handwheel mechanism, etc. |
Note: for detailed actuator parameters, please go to the pneumatic actuator page for inspection.
Material for main parts of pneumatic lining butterfly valve
Body and base | Ductile cast steel, cast steel, stainless steel, fluorine lined |
Disc | Gray cast iron, spheroidal graphite cast steel, cast steel, stainless steel and special materials, fully lined with fluorine. |
Seal ring | All kinds of rubber and polytetrafluoroethylene |
Stem | 2Cr13, stainless steel, fully lined fluorine |
filler | V PTFE packing and flexible graphite filler |
Return difference | Positioner: less than full stroke.2% |
Return difference | Positioner: less than full stroke.±2% |
Leakage amount L / h | Comply with ANSI B16.104 IV level standard |
Adjustable range R | 50：1 |
Nominal diameter DN (mm) | 50-1800 | |||
Nominal pressure | PN(MPa) | 0.6 | 1.0 | 1.6 |
Test pressure | strength test | 0.9 | 1.5 | 2.4 |
Seal test | 0.66 | 1.1 | 1.76 | |
Low pressure airtightness test | 0.6 | 0.6 | 0.6 | |
Applicable medium | Air, water, sewage, steam, gas, oil, etc. | |||

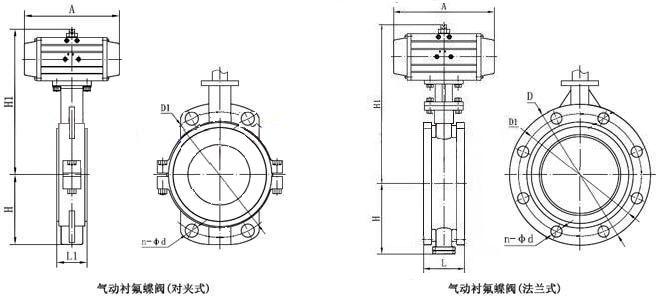

構(gòu)圖.jpg)
Nominal diameter DN (mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | |
L | 90 | 90 | 100 | 115 | 130 | 140 | 150 | 250 | 270 | 290 | 310 | 330 | 350 | 390 | 430 | 470 | 500 | 550 | |
L1 | 43 | 46 | 49 | 56 | 64 | 70 | 71 | 76 | 83 | 92 | 102 | 113 | 127 | 154 | 165 | 190 | 203 | 216 | |
H | Flanged | 63 | 70 | 83 | 105 | 115 | 137 | 164 | 206 | 230 | 248 | 289 | 320 | 343 | 413 | 478 | 525 | 585 | 640 |
Pair clip | 63 | 70 | 83 | 105 | 115 | 137 | 164 | 206 | 230 | 248 | 289 | 320 | 343 | 413 | 478 | 525 | 585 | 640 | |
n-φd | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-22 | 12-22 | 12-26 | 12-26 | 16-26 | 16-30 | 20-30 | 20-33 | 20-36 | 24-36 | 24-39 | 28-39 | 28-42 | |
H1 | Depending on the executing agency. | ||||||||||||||||||
A | Depending on the torque required by the valve, the configuration models are different and the dimensions are different. | ||||||||||||||||||
D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 | 580 | 640 | 715 | 840 | 910 | 1025 | 1125 | 1255 | |
D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 | 585 | 650 | 770 | 840 | 950 | 1050 | 1170 | |
